GROVER

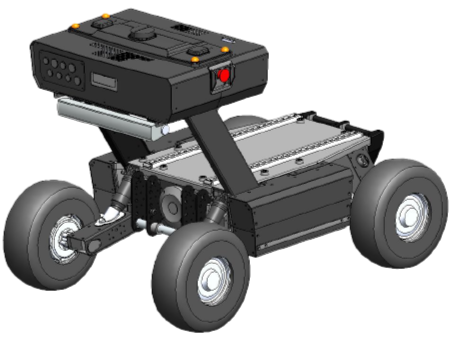

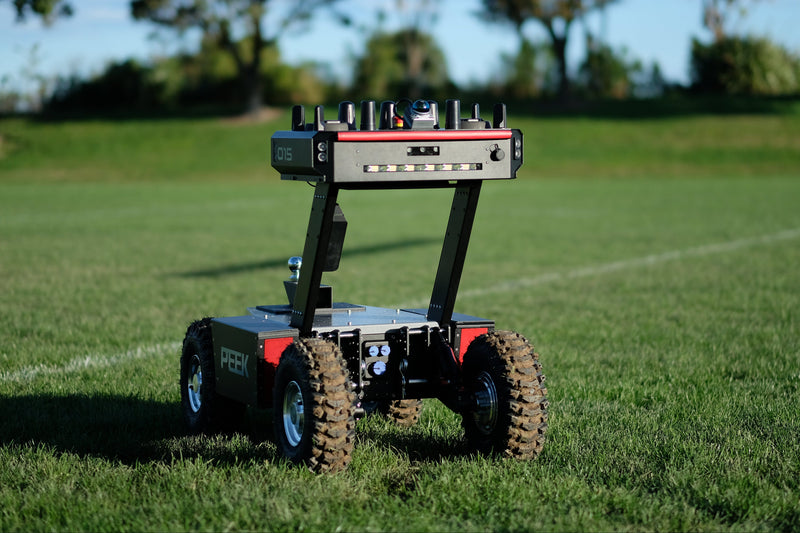

OVERVIEW

OVERVIEW

Flexible

A Multi-Purpose Platform

Adaptable platform with a simple mounting system and software interface. Mount your tools and set mission parameters in minutes.

INTEGRATED

An Advanced Autonomous Navigation Package

Equipped with RTK-GNSS, LiDAR, stereo cameras, IMU, and environmental sensors for reliable, high-precision autonomy — even in challenging environments and at night.

compatible

Full Connectivity & Open Integration

Open connectivity with CAN, GPIO, Ethernet, USB, WiFi, and 4G. Seamlessly integrate your sensors, control systems, and external networks.

  • Built In Intelligence

    RTK-GNSS, LiDAR, stereo cameras, IMU, and environmental sensors — all pre-integrated and calibrated. Deploy autonomous operations immediately.

  • Integration-Ready

    CAN, Ethernet, GPIO, USB connectivity with pre-configured power management. Connect your tools and systems without development delays.

  • Built for Real Work

    120kg payload capacity, outstanding slope climbing ability, 7-hour runtime plus extension battery. Reliable performance in demanding field conditions.

  • Flexible Control

    Operate from the machine, by remote control, built-in HMI or web interface. Choose the control method that fits your operation and workflow.

  • Complete Support

    Full mechanical, electrical, and software integration services available. Get a working solution, not just hardware to figure out.

FEATURE HIGHLIGHTS

From terrain handling to smart autonomy, explore the capabilities packed inside Grover.

DRIVE & HANDLING

  • Heavy Payload & Towing Power

    Despite its compact size, Grover carries up to 120 kg and delivers impressive towing power. It’s built to move more — hauling tools, equipment, and cargo with ease and reliability.

  • Confident on Slopes

    With integrated traction control, the robot climbs gradients up to 42° in testing conditions, delivering reliable grip and balance.

  • The Perfect Turn

    Default Ackermann steering for smooth, precise turns without tearing up the ground, ideal for sensitive terrain. For tighter spaces, skid steering is also available, offering maximum maneuverability when needed.

NAVIGATION

  • GPS-Based Navigation

    High-precision guidance for repeatable, hands-free operations in the field.

  • LiDAR Perception

    Enables safe navigation and real-time obstacle detection for complex environments.

  • Person-Following

    A simple, ad hoc way to have the robot follow you, no setup needed.

CONTROL

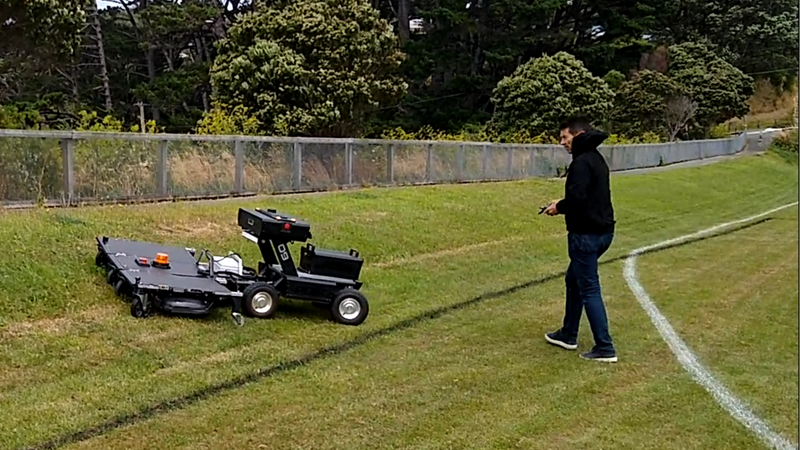

  • Remote Control

    Manual navigation with precise handling when you need it.

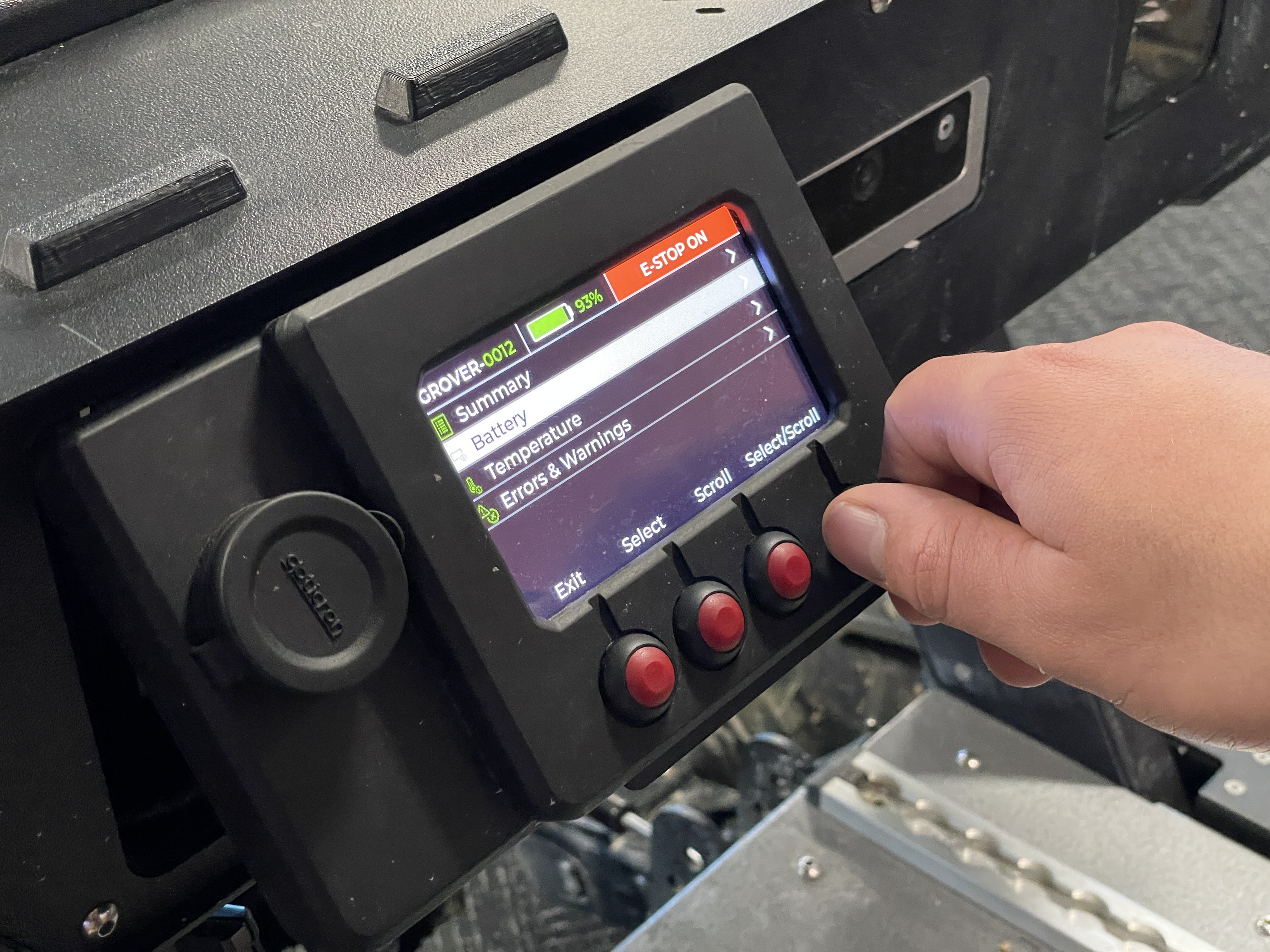

  • Onboard HMI

    Quick access to status and controls directly on the robot.

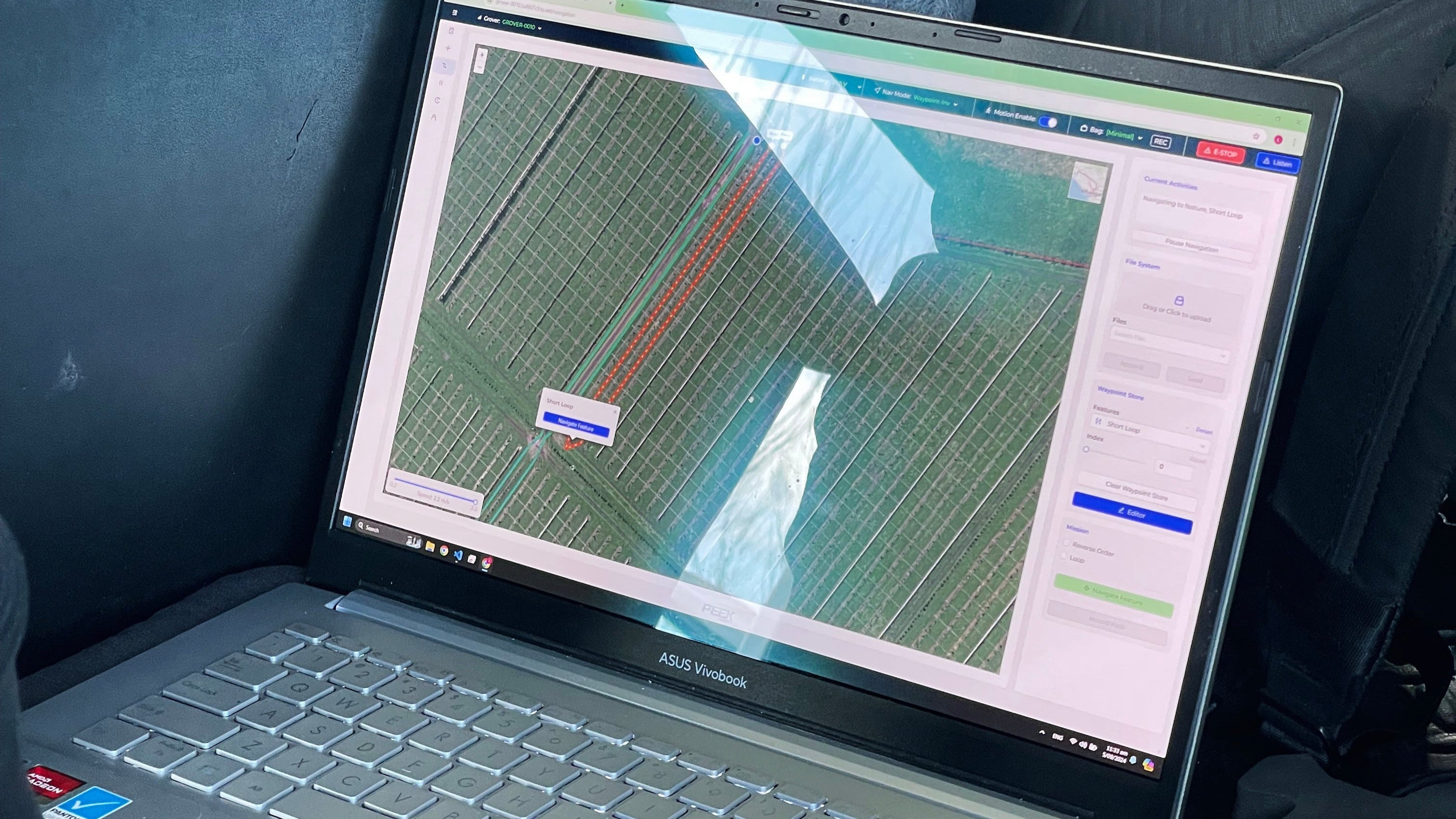

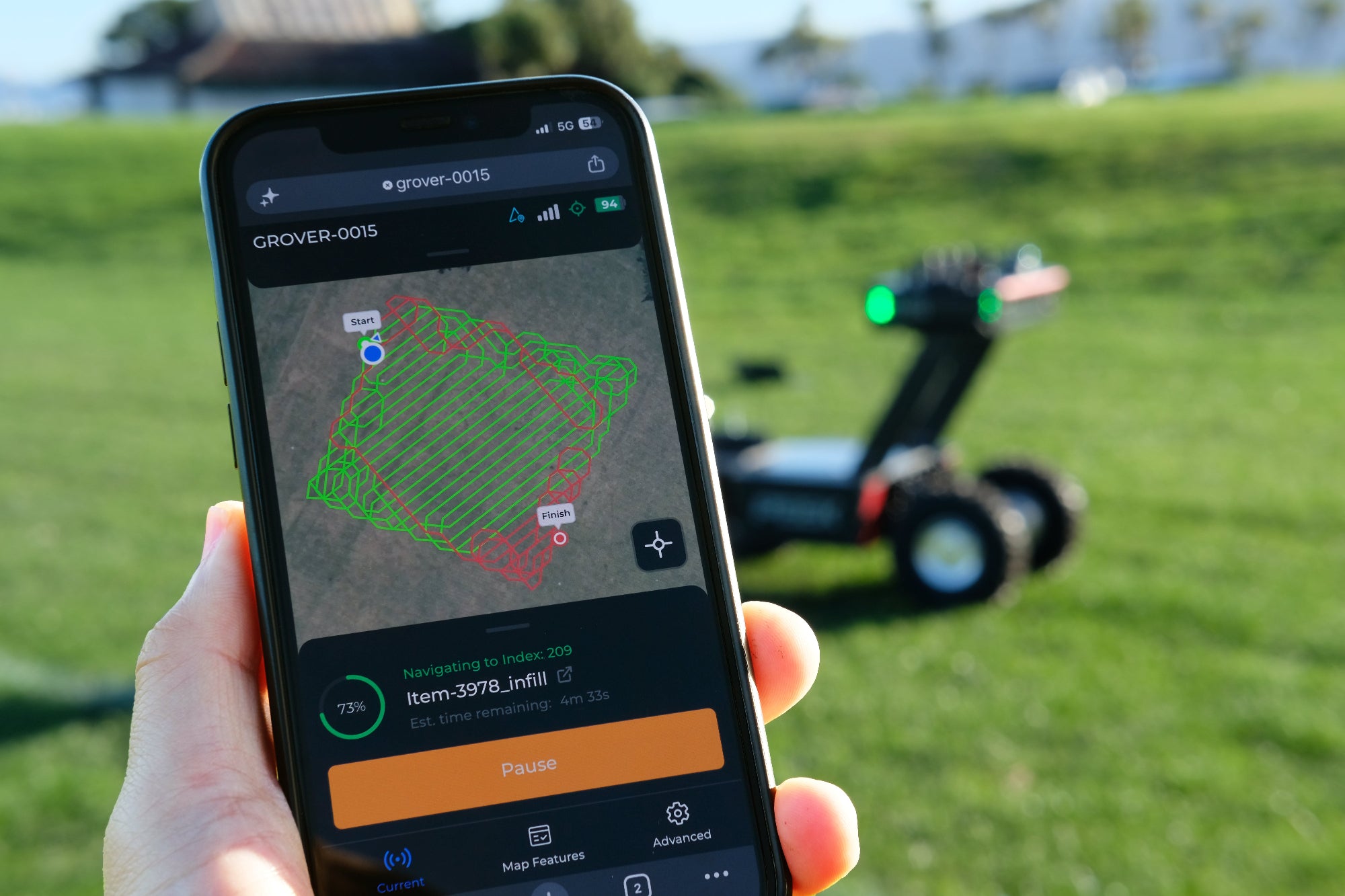

  • Web UI

    Configure missions and monitor live data from any device.

SAFETY

  • Obstacle Detection & Rerouting

    When an obstruction is detected, the robot automatically plans a new path and navigates around it. Rerouting happens without human input, keeping operations running smoothly even in changing environments.

  • Human & Animal Detection

    The robot actively detects nearby people and animals to ensure safe operation. It slows down, stops, or reroutes as needed—reducing risk and enabling safe interaction in shared environments.

  • Multi-Layer Safety: Bumper & E-Stop

    As part of a multi-layer safety system, the bumper stops the robot on contact, while accessible e-stop buttons provide instant manual override when needed.

Whether you're developing autonomous missions, transporting payloads, or testing your own sensors and systems, Grover delivers dependable performance, advanced navigation, and seamless integration out of the box.

SPECIFICATIONS

Front view
Right view
Top view
Specification Details
Dimensions
1115mm (L) x 730mm (W) x 850mm (H)
Weight
80kg
Max Payload
120kg
Drive Train
Four Geared Wheels
All-Wheel Drive (AWD)
Integrated Traction Control
Drive Configurations
Ackerman Steering
Skid Steering (Selectable)
Max Climbing Angle
42° (controlled environment)
25° (typical outdoor terrain)
Runtime
7 hours without load
Extension Battery Pack Available
Charge Time
2.5 Hours
Max Speed
2.2 m/sec
7.9 km/hr
Navigation Sensors
RTK-GNSS, LiDAR, Vision, IMU
Control Modes
Manual: Remote, Onboard HMI
Autonomous: GPS Waypoint, LiDAR SLAM, Person Following, Tag Following
Lighting
4 Top and 2 Rear Hazard Lights
Front and Rear LED Floodlight
Safety Systems
2 Emergency Stop Buttons
Person and Obstacle Detection
Front Bumper
Connectivity & Interfaces
CAN, GPIO, Auxiliary Power Outputs, Ethernet, USB, WiFi, 4G
