CAMERA & LIGHT INTEGRATIONS
KEY COMPONENTS
Key Component
Camera Floodlights Controller
This versatile driver board is purpose-built for advanced imaging and illumination control. Operating from a 30–60V DC supply, it provides four independent LED channels with PWM and strobe outputs, along with multiple camera trigger and I/O options. Designed for precision synchronisation in vision, inspection, and data-capture systems, it supports a range of logic level voltages for seamless integration with diverse equipment.
- 30–60V DC Input Voltage
- 4 x LED Channels (PWM & strobe output)
- 2 x Camera Trigger Outputs
- 2 x Camera Shutter Inputs
- 2 x General-Purpose Outputs (GPO)
- 2 x General-Purpose Inputs (GPI)
- 1.8–3.3V Logic Level Voltage Support
Key Component

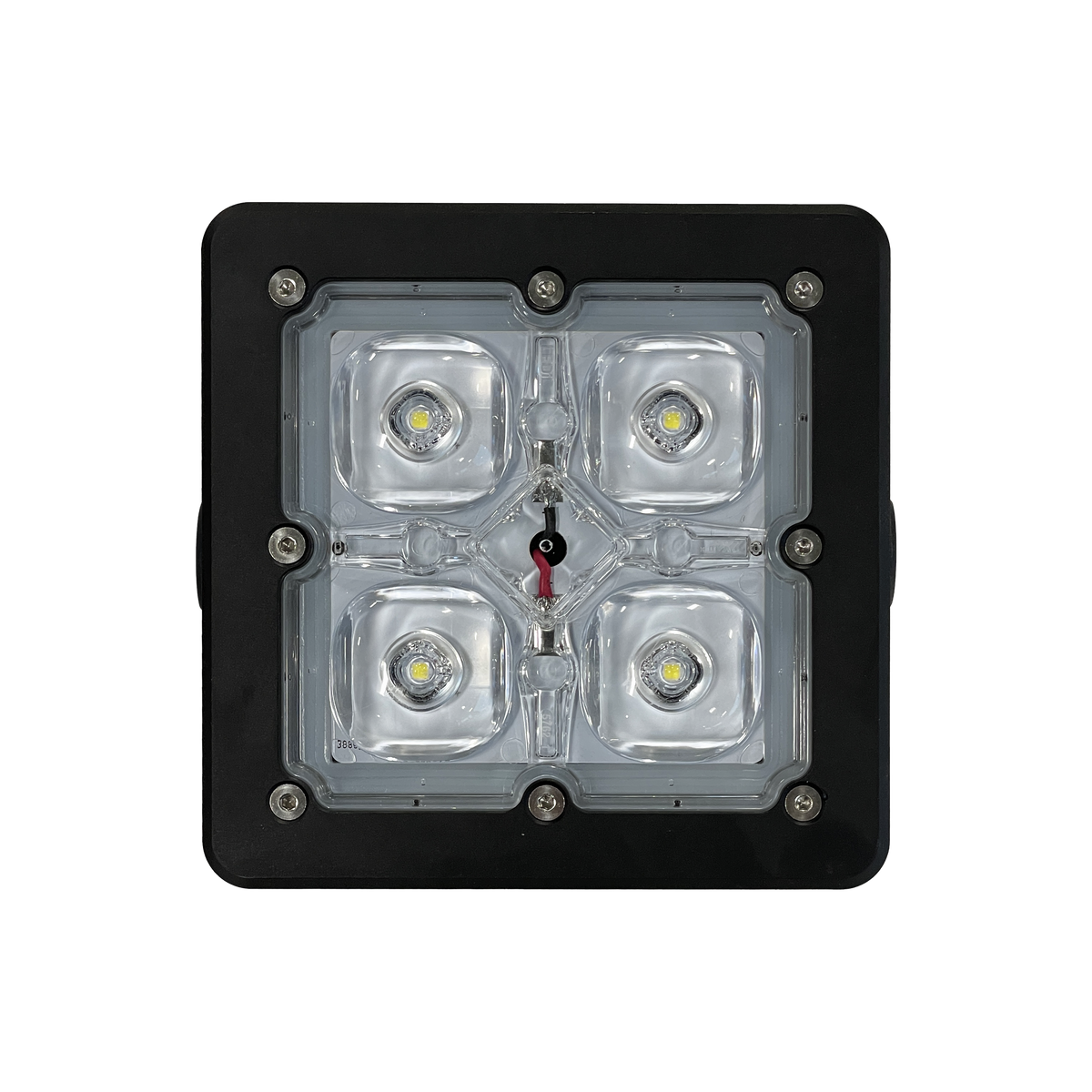

20,000 Lumen Strobe Light
The 20,000-lumen strobe light is a versatile, ultra-bright illumination module powered by a 30–60V DC supply. It’s designed to pair seamlessly with cameras for data-capturing and crop-imaging applications, while remaining suitable for any high-intensity lighting task.
- 30–60V DC Input Voltage
- 180W Power Consumption
- 20,000lm Light Output
- 110 × 110 × 65 mm Dimensions (with cable gland)
Solution OFFERING

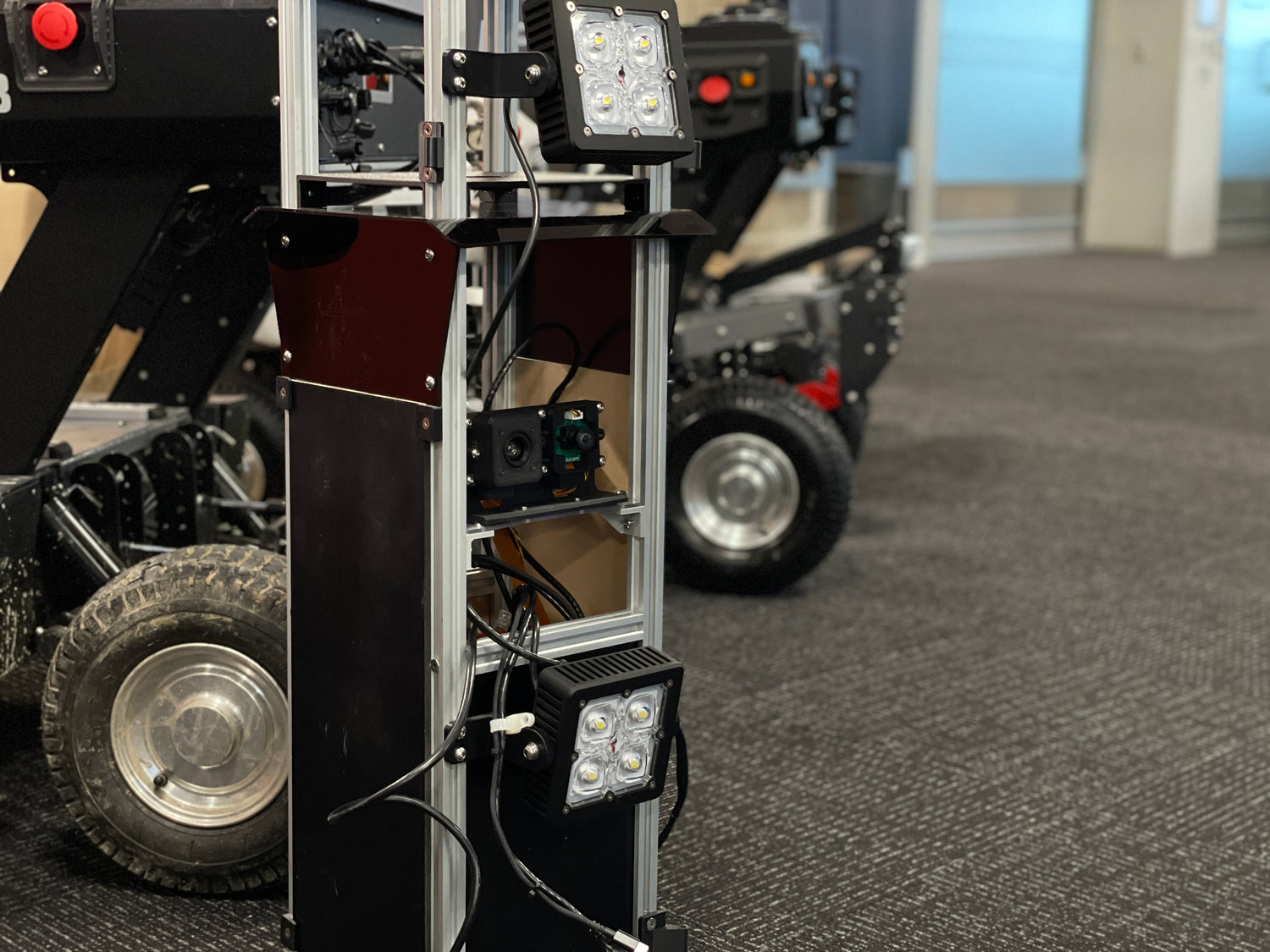

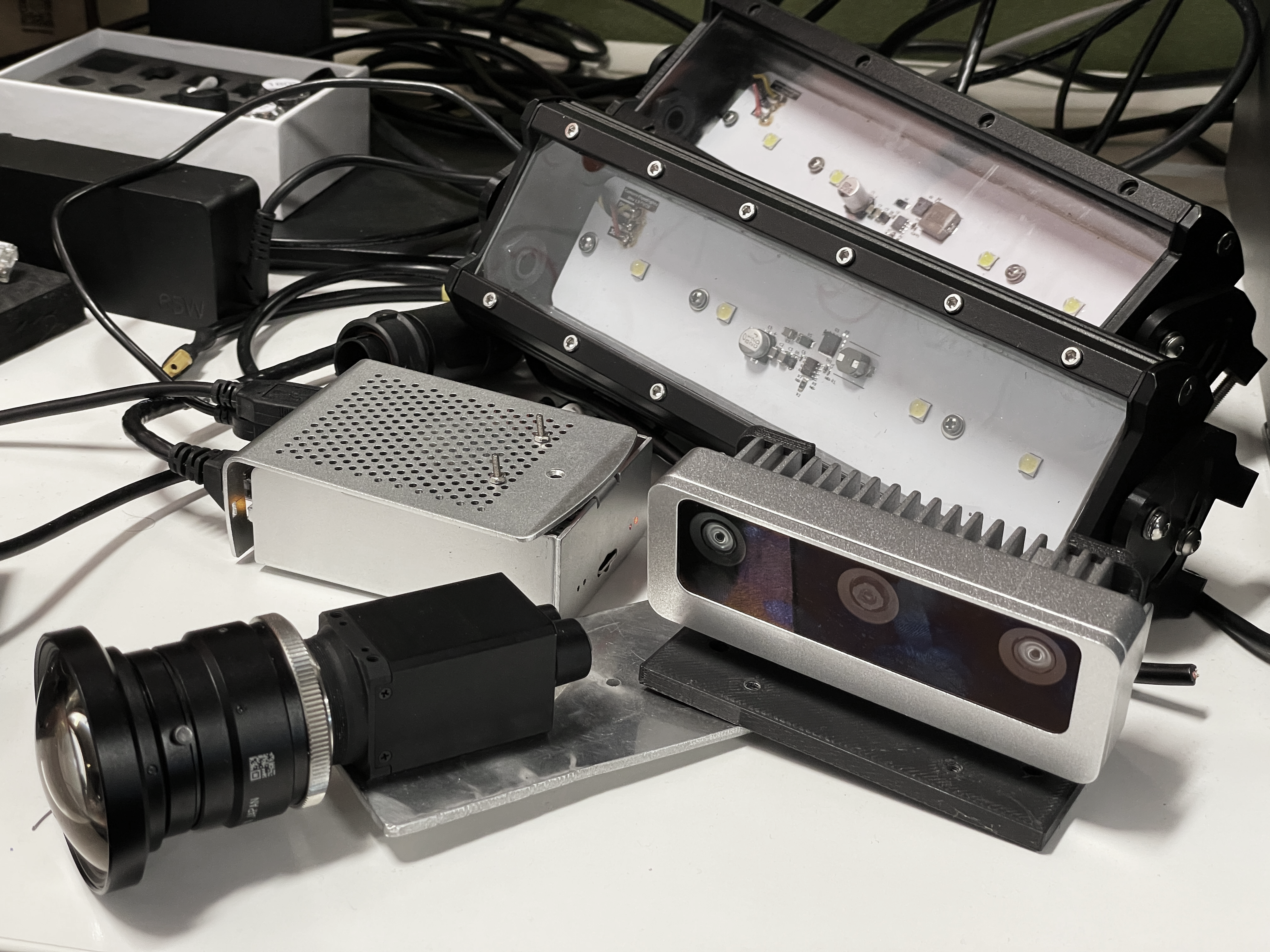

Custom Camera Rig
When paired with our illumination and control systems, the right camera rig becomes crucial for optimal data capture performance. With diverse applications requiring specific imaging specifications—from resolution and frame rates to spectral sensitivity and synchronization timing—selecting the appropriate camera system can be challenging given the vast array of available options.
We understand that every project has unique requirements, whether for agricultural monitoring, industrial inspection, or specialized research applications. Our team provides comprehensive camera rig development services, working with clients to design and integrate custom solutions that maximize the potential of our lighting and control hardware. From initial consultation and component selection to mechanical design and system calibration, we support the entire development process and offer post-processing solutions to ensure your captured data meets precise analytical requirements.
